real-time 3D · horology

Custom timepieces

A mechanical watch that exists only as software, specified as if it were going to be made: a three-axis tourbillon with constant force, simulated part by part in the browser. Wind it, set it, take it apart.

role
concept · specification · design · build
for
anyone curious how a fine movement works
status
live · phase 1 of 2 · 2026

A code-drawn study of the movement seen through the caseback: rose-gold plate with Côtes de Genève, a platinum seconds ring, a jewelled three-armed bridge, and three nested cages turning in eight steps a second around a balance beating at 4 Hz.

[the tourbillon, drawn here from the watch’s own kinematics · the full watch opens in its own page]

01why it exists

The watch I would commission, if anyone could make it.

The most complicated watches are made in single figures and seen through a loupe by almost nobody. How they work is usually explained with a diagram of something much simpler.

This is the whole watch instead: every wheel, spring, jewel and screw, turning at the right rate, in a case you can open. It is built to be understood. Wind it and the power reserve climbs. Pull the crown and the seconds stop. Take the dial off and follow the power from the barrels to the balance.

It carries no brand. The only mark is a monogram, on the dial and in relief on the crown.

606
pieces, 324 of them distinct, each one modelled
3
nested tourbillon cages, turning in 60, 75 and 35 seconds
192 h
of constant-force power from four mainsprings
4 Hz
28,800 beats an hour, eight a second
858
engineering checks, all passing
2 MB
one file; it makes no network requests at all

02plates

From the watch itself.

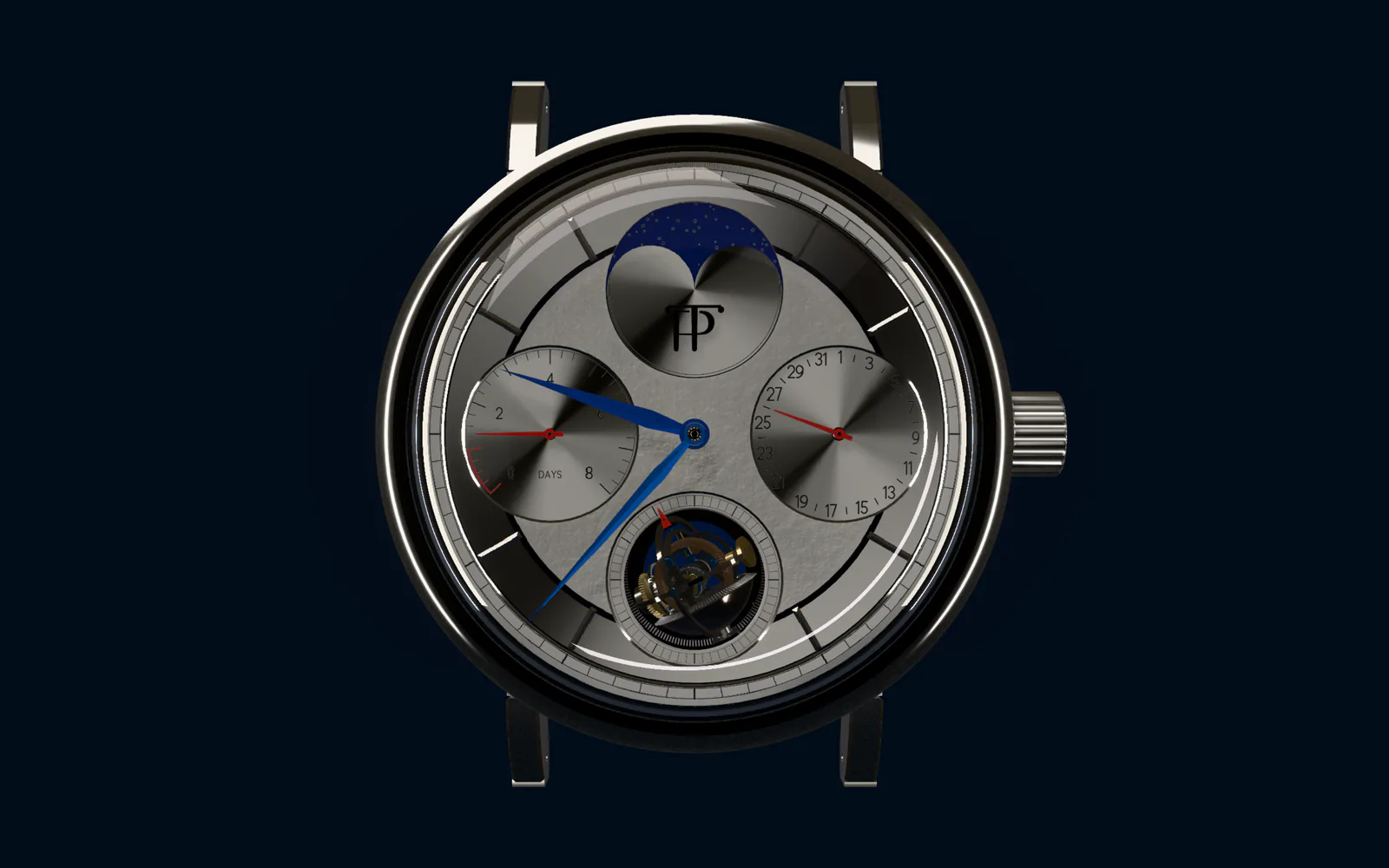

dial · moon at 12 · date at 3 · reserve at 9 · tourbillon at 6

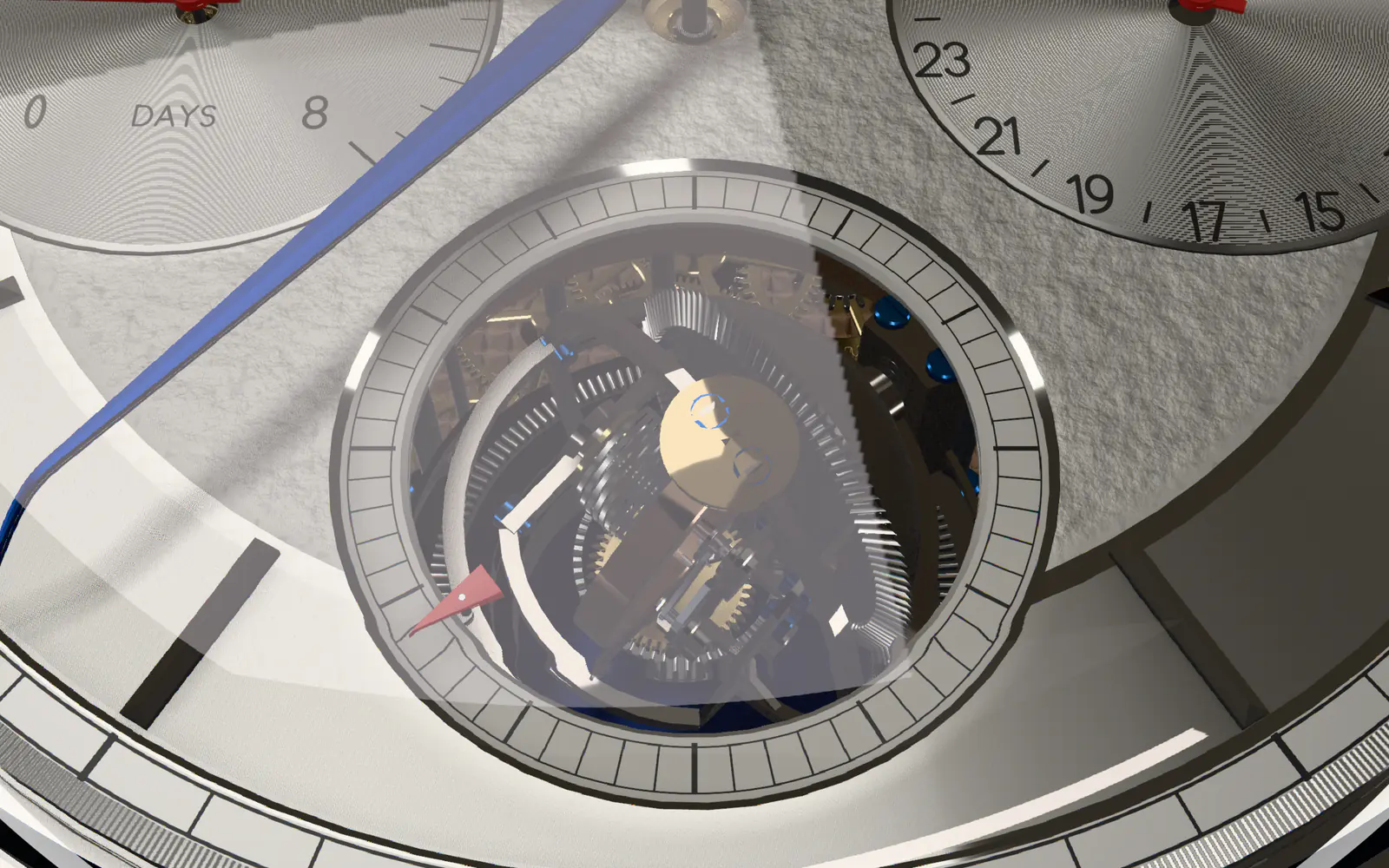

the seconds are read from the cage

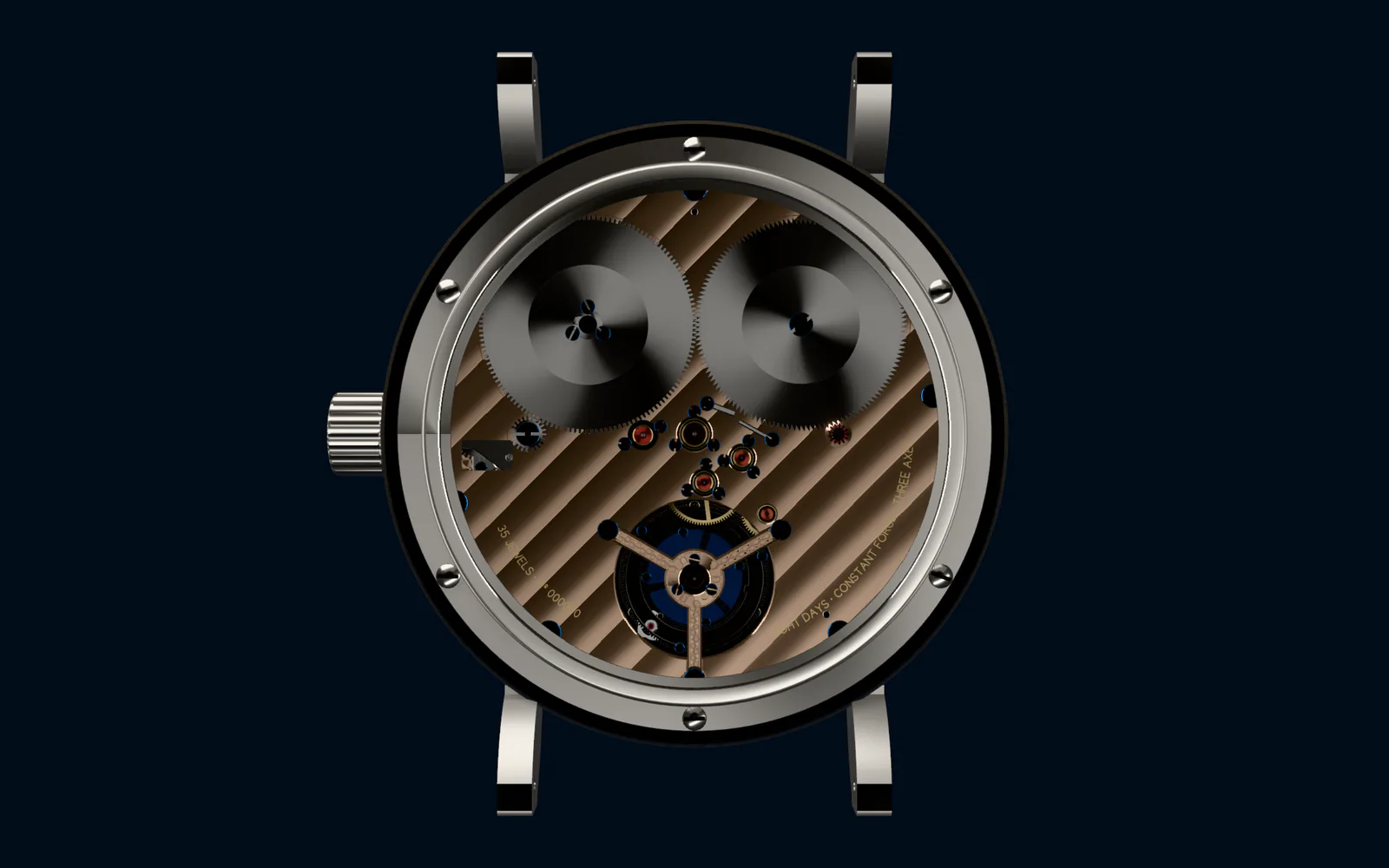

caseback · 35 jewels · eight days · constant force · three axes

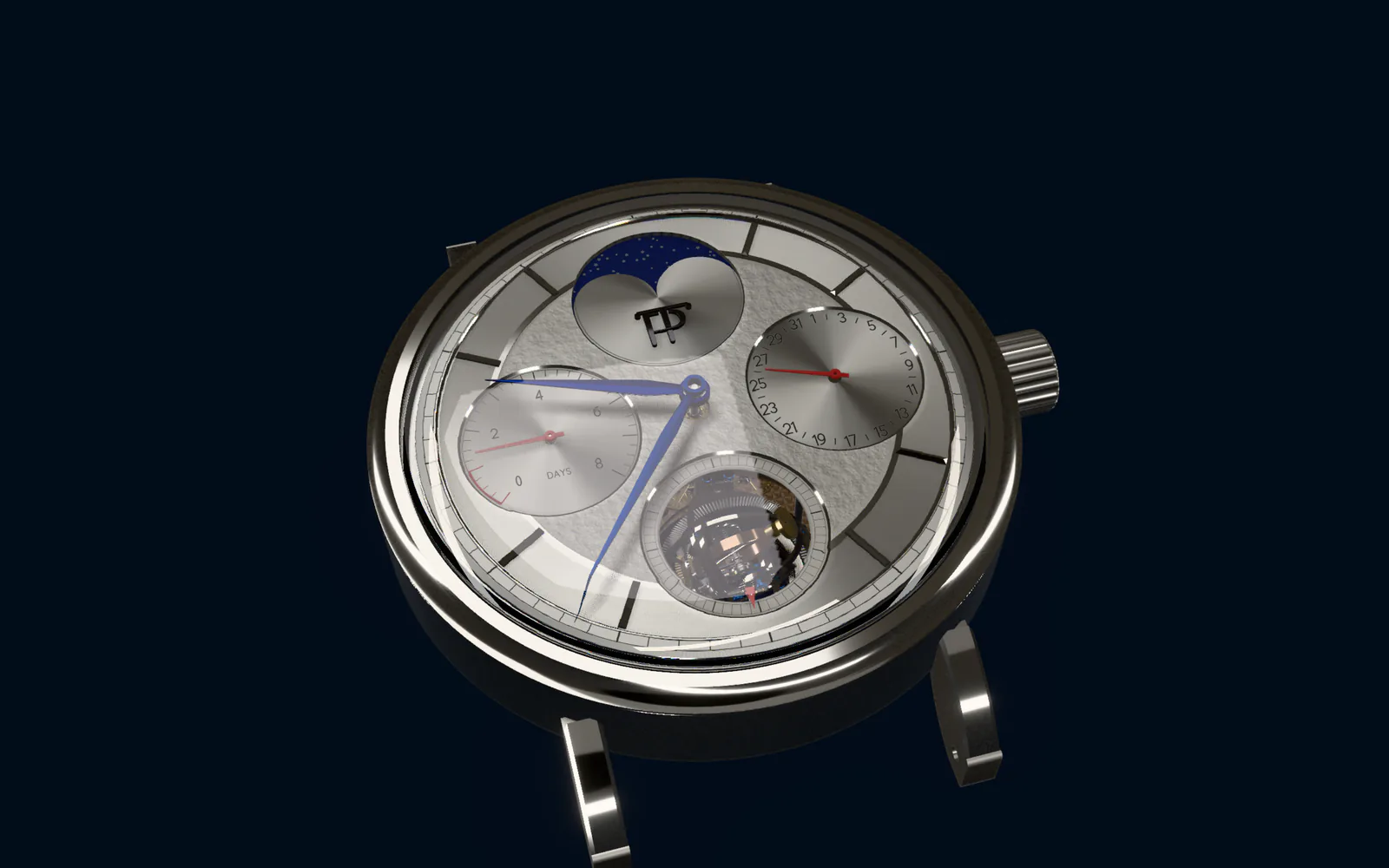

42 mm · platinum

03what it does

Features.

The watch

  • A 42 mm case, 14.8 mm tall under a domed sapphire, in platinum, rose gold or white gold
  • Three titanium tourbillon cages, one inside the next; the pattern repeats every 35 minutes
  • Seconds are read from a red triangle on the outer cage, stepping eight times a second
  • Moon phase at twelve, a jumping date at three, power reserve at nine
  • Eight days of running, held even by a constant-force mechanism
  • 35 jewels, 79 screws, 36 materials and 42 finishes

Handle it

  • Wind it from the crown; pull to set the date, pull again to set the time, with the seconds stopped
  • Take the case and crystals off; fade the materials; show the wireframe
  • Explode the movement, by any amount
  • Tap a part for its name, material, job, lubricant and what it is doing right now
  • Five camera positions: the whole watch, the dial, the back, the side, the tourbillon

Hear it

  • A tick built from openly licensed recordings and modal synthesis
  • The once-a-second accent comes from the simulated constant-force mechanism, not a timer
  • It quietens when the movement is exploded

Engineering

  • Twelve plan documents and one data file that everything else is derived from
  • Twenty calculation scripts check the gear trains, the springs and the fit of every part
  • WebGPU where the browser has it, WebGL 2 where it does not; three quality tiers
  • Finishes are rendered optically: bevels, stripes, circular graining, black polish, heat-blued steel
  • The whole app is one self-extracting file whose security policy forbids any connection

04decisions

Why it is the way it is.

premiseSpecify it as if it were going to be made.
A pretty animation of a tourbillon is easy. The interesting question is whether the watch could exist: do the trains mesh, does the spring last eight days, does it fit in the case. So the plan came first and the picture is derived from it, and 858 checks have to pass before anything is drawn.
honestyIt grew taller than planned, and says so.
The first brief capped the height at 12 mm. Three nested cages would not fit. Rather than fudge the model, the domed crystal takes the extra height and a stepped back hides some of it, which reads thinner on the wrist than a thicker band of metal would.
the dialSeconds on the cage, and no seconds hand.
The tourbillon is the point of the watch, so it tells the seconds itself. That needs the outer cage to turn clockwise, which took a reversing wheel and mirror-image escapement parts. The display earned a change to the mechanism.
honestyThe constant force is not perfectly constant, and the app shows it.
Over the eight days the balance’s swing drifts from 277° to 291°. A simulation could quietly flatten that. It is shown as it would be, because the drift is what a watchmaker would ask about.
soundNo borrowed tick.
The right sound would be a recording of a real high-end movement. No recording exists that could lawfully be used, so that slot ships empty and the tick is built from openly licensed sounds and synthesis instead.
detailThe hands are blued by physics.
Blued steel is an oxide film whose thickness sets its colour. At 62 nanometres the film read azure; at 52 it reads royal blue. The colour on screen comes from that table, not from a paint swatch.
scopeGeometry and motion first, friction second.
Phase one is every part, moving correctly on an ideal clock, with materials, controls and sound. A truly simulated escapement, with friction and impulse, is phase two. Shipping the first without pretending it is the second keeps both honest.
privacyIt cannot phone home.
The page is a single file whose security policy forbids every network request. Nothing about how you wind your watch goes anywhere.

[TypeScript · three.js on WebGPU with a WebGL 2 fallback · physics in a worker · Web Audio]
